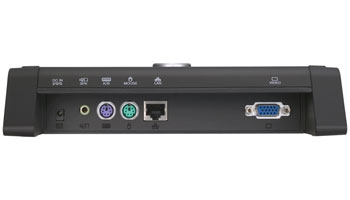

The NComputing L100 and L110 incorporate the unique User eXtension Protocol (UXP) into a basic access terminal that connects over Ethernet to the shared host PC. The L100 features a unique design that covers the VGA, Ethernet, PS/2, audio and power cable connectors that plug into the rear of the unit. This makes the L100 ideal for desktop applications where clutter should be minimized. The L110 features a compact design that lets you place it anywhere in your environment. The VGA, Ethernet, PS/2, audio and power cables plug into the rear of the unit where the power switch is also located. This design lets you stack units for users requiring multiple terminals. If you need USB flash drive access in addition to the peripherals listed above, consider the new NComputing L200.

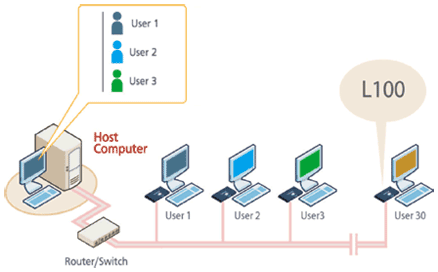

Up to ten L100/L110 terminals can share a single PC running a desktop operating system and up to 30 L100/L110 terminals can share a single server. Since the connection to the host is over Ethernet, the L100/L110 can be located any distance away. Nearly all applications on the host system can be shared simultaneously by all of the L100/L110 users including web browsers, instant messaging programs, e-mail applications, office productivity suites and even basic multi-media applications (this solution is not recommended for high-end 3D gaming or 3D design applications). Note that additional software licenses may be required by your application software providers (check your software license agreements to ensure you have the appropriate number of licenses).

The L100/L110 is a great solution for a variety of applications including public access areas, general office, training centers, and manufacturing. Visit our Solutions section to find out how organizations throughout the world are using the L100/L110 in a variety of applications.

Each terminal comes with a power adapter, a network cable, and documentation. A CD with the NComputing terminal services software and the associated license is included at no extra charge. Note that the host PC, user peripherals and networking equipment are not included and must be purchased separately.

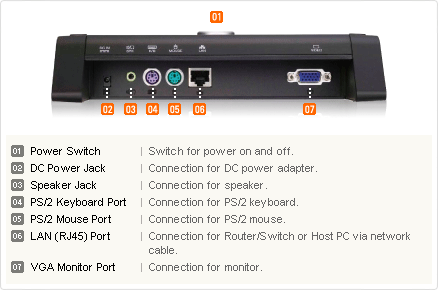

L100 Connection View

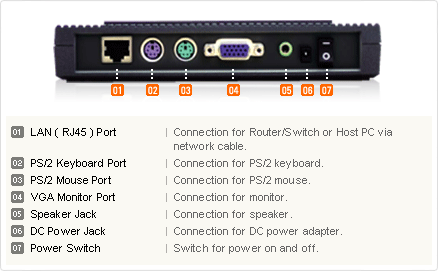

L110 Connection View


  • Download the datasheet for detailed specifications: L100 PDF - L110 PDF
  • Visit the Download Center for other documentation including Product Manuals, Quick Start Guides and Video Users Guides.
