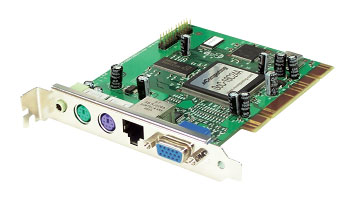

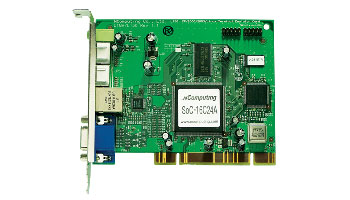

The L150 is intended for end users that normally require multiple, separate PCs at their work area. For example, many military and intelligence agencies require that users work on separate PCs that are connected to different secure and public networks. The NComputing L150 incorporates the unique User eXtension Protocol (UXP) into a PCI plug-in card that connects over Ethernet to a separate shared PC - usually one that is connected to a public network and the open internet. The L150 draws power from the PC into which it is plugged, however, it is otherwise a completely separate terminal.

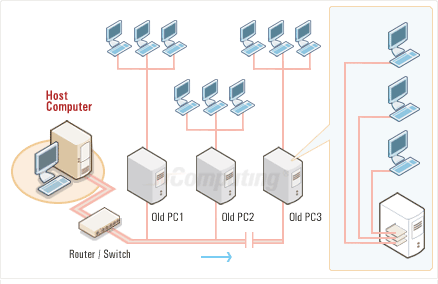

Space at the user desktop is saved by mounting the L150 into an existing PC, rather than using a separate external L Series terminal. The end user can switch between the secure PC at their desk and the shared open PC accessed by the L150 via a standard KVM (Keyboard-Video-Mouse) switch. The L150 can also be used to upgrade an old PC to function like any standard L Series terminal and connect back to a shared host. Several L150s can be installed in an old PC to support multiple users.
|

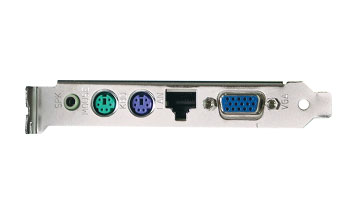

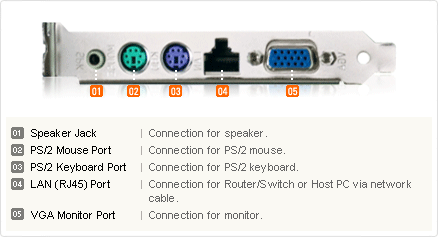

The L150 includes connections for VGA, Ethernet, PS/2, and audio that are accessible through the PCs plug-in card slot. Up to ten L150 terminals installed in multiple PCs can share a single host PC running a desktop operating system and up to 30 L150 terminals can share a single server. Since the connection to the host is over Ethernet, the PC with the L150 installed can be located any distance away from the shared host PC. Nearly all applications on the host system can be shared simultaneously by all of the L150 users including web browsers, instant messaging programs, e-mail applications, office productivity suites and even basic multi-media applications (this solution is not recommended for high-end 3D gaming or 3D design applications). Note that additional software licenses may be required by your application software providers (check your software license agreements to ensure you have the appropriate number of licenses).
|
Each L150 comes with the PCI card, documentation and a CD with the NComputing terminal services software and an associated license. Note that the host PC, KVM switch, user peripherals and networking equipment are not included and must be purchased separately.
|
|
| |
 |
- Download the datasheet for detailed specifications: PDF
- Visit the Download Center for other documentation including Product Manuals, Quick Start Guides and Video Users Guides.
|
|
|
